Diamond beveling chamfer bits exhibit extraordinary versatility, being adept at handling a wide variety of materials such as stone, porcelain, ceramic, glass, and gemstones. Their diamond grit coating empowers them to perform efficient grinding and shaping of tough surfaces, making them suitable for numerous applications like countertop beveling, tile chamfering, as well as tasks like reaming, trimming, chamfering, and polishing on materials like stone and ceramics. This enables them to deliver high-quality results across diverse projects and enhance the overall capabilities of any toolset.
The diamond cone tile bit stands out for its exceptional durability. With a diamond-coated tip, it can effortlessly cut through hard tile materials like porcelain and granite, far outlasting regular carbide or steel bits. It retains sharpness and cutting performance over extended use, handling tough drilling jobs with ease.
Our diamond beveling chamfer bit is engineered with high-grade diamond particles in a sturdy metal matrix, ensuring outstanding hardness and longevity. It offers superior cutting performance, perfect for heavy-duty tasks and providing excellent abrasion resistance.
| Drill Type |
Core Drill Bit, Countersink Drill Bit |
Use |
Masonry Drilling |
| Finish |
Other |
Total Length |
Standard |
| Material |
Alloy Steel, Diamond |
Finish Type |
Steel |
| Shank Type |
Straight |
Cutting Angle |
60 Degrees |
| Diameter |
1-7/8"(48mm) |
Thread |
5/8"-11 |
[Function]

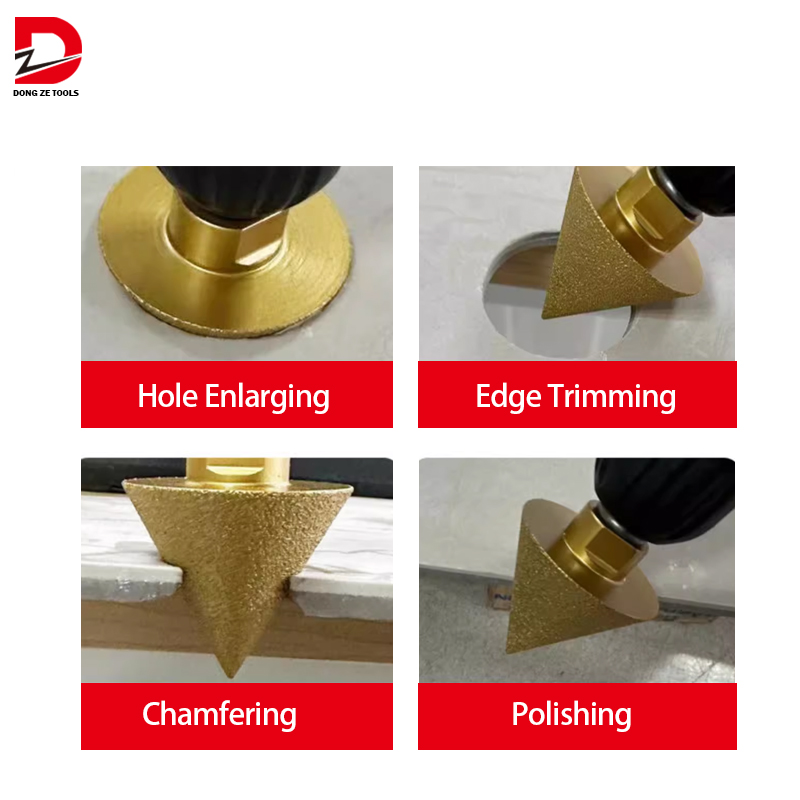

The beveling chamfer bit designed to enlarge or trim round holes in ceramic, glass, granite stone tile marble etc. Also suitable to create round shape indentation to accommodate pipes or wires.
[Application]
The diamond beveling bit is 60 degree, 1-7/8” (48mm) diameter fit for the hole size from 3/16” to 1-3/4”.
[Material]

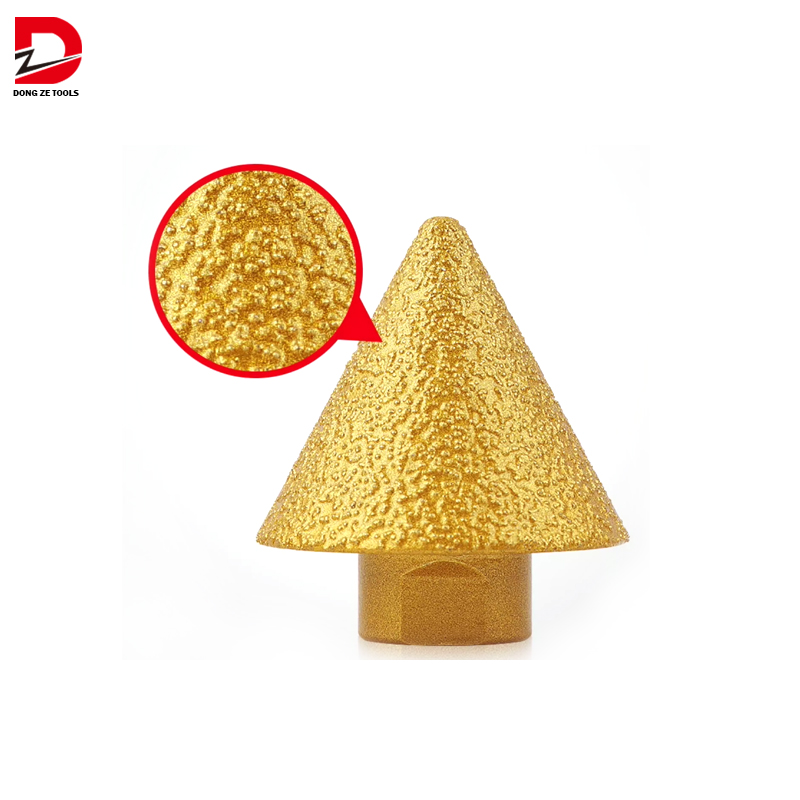

Durable steel with diamond plating provide long lasting, even diamond particle will bring a smooth beautiful hole finish.
[Using Tip]
The diamond beveling chamfer bit suitable for both wet and dry use. Wearing mask and gloves to protect yourself during working.
[Dimension]

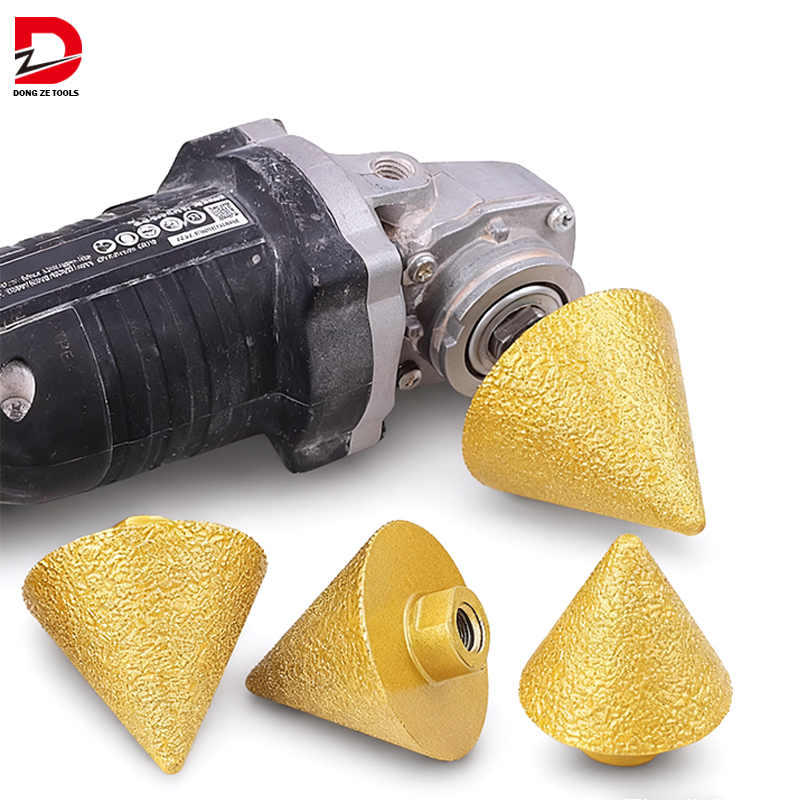

1-7/8”(48mm) diameter x 5/8”-11 threads arbor for angle grinder use only. Grit: #80. Degree: 60.
Frequently Asked Questions
What materials can this diamond beveling bit be used on?
This bit is highly versatile and can be used on stone, porcelain, ceramic, glass, granite, marble, and gemstones.
Can I use this tool for dry drilling?
Yes, the diamond beveling chamfer bit is engineered for both wet and dry applications.
What is the main purpose of a chamfer bit?
It is designed to enlarge, trim, and clean up round holes, as well as create beveled edges or sink-in indentations for wires and pipes.
What equipment is compatible with the 5/8"-11 thread?
The 5/8"-11 threads arbor is specifically designed for use with standard angle grinders.
What is the angle of the bevel?
This specific diamond beveling bit features a 60-degree angle for precise chamfering and shaping.
Does the diamond coating provide a smooth finish?
Yes, the high-grade diamond particles ensure a smooth, professional finish even on tough surfaces like porcelain and granite.
